Media Preparator

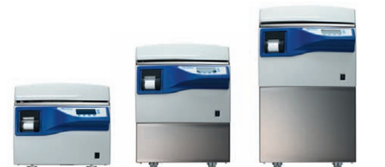

Innovation Diagnostics offers the widest range of media preparator available today. From 10 to 120 liters capacity, our extensive MediaPrep™ line of high value media preparator delivers flexibility, performance and full traceability.

Back to category page

Media Preparator For up to 30 Liters New

0

0

Prepare and sterilize microbiological media. Fast, accurate and easy to handle. Systec MediaPrep. For up to 30 litres.

Download Brochure

Easy and safe to handle

Locking of the door and loading hatch is dependent on temperature and pressure. Accidental opening is not possible! The inner vessel holder is exchangeable and easy to remove and clean. Every MediaPrep is so equipped and controlled that it can be used as a normal autoclave.

0

Heating and cooling systems are highly effective

Powerfull heating elements enable particularly rapid heating to be carried out. Rapid cooling is by water circulation and support presssure directly at the external walls of the media vessel using sterilized demineralized water. The water is brought to cooling temperature using a plate heat exchanger with a water connection. The total process time including heating.

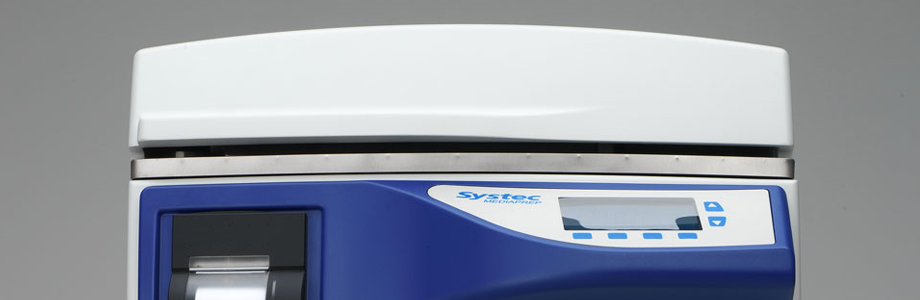

Media Preparator For up to 120 Liters New

0

0

Prepare and sterilize microbiological media. Fast, accurate and easy to handle. Systec MediaPrep. For up to 120 litres.

Download Brochure

Large vessels are just as easy to handle as compact ones

Here also locking of the door and loading hatch is dependent on temperature and pressure. Accidental opening is not possible! The inner vessel is just as convenient to exchange, to remove and to clean. These large vessels are also so equipped and controlled that they can be used as normal autoclaves.

0

Quickly heated, quickly cooled

The powerful heating elements are adapted to the size of the vessel and hence facilitate rapid heating. Rapid cooling is the same as in the smaller vessels with water circulation and support pressure directly at the external walls by means of sterilized and demineralized water brought to cooling temperature using a plate heat exchanger with a water connection. The support pressure avoids an overboiling respectively foaming of the media. The air compressor is built-in.

Comparative

  Mediaprep-10 Mediaprep-20 Mediaprep-30 Mediaprep-45 Mediaprep-65 Mediaprep-90 Mediaprep-120
Dimensions
(L x W x H) in mm		 550 x 655 x 530 550 x 655 x 530 550 x 655 x 965 550 x 775 x 1000 550 x775 x 1130 650 x 895 x 1030 650 x 895 x 1160
Chamber dimensions
Ø x H in mm		 296 x 250 296 x 450 296 x 650 400 x 488 400 x 693 500 x 615 500 x 795
Chamber volume
in litres		 17 31 41 62 88 123 158
inner vessel dimensions
Ø x H in mm		 266 x 222 266 x 422 266 x 622 366 x 452 366 x 657 467 x 572 467 x 752
inner vessel volume in litres 12 23 34 47 69 98 129
Wattage in kW 3,6 10,0 10,0 20 20 20 20
Dimensions and media connections Download Download Download Download Download Download Download
