Precision Balances
Back to category pageEXPLORER The industry’s most easy-to-use balance New

- SmarText 2.0 software with full color touch screen display guides users through the weighing process
- AutoCalTM automatic balance calibration—no need for external masses 4 Touch-free operation—two sensors on the base and two on the display 4 QWERTY keyboard and numeric keypad
- Fast stabilization time—up to 50% faster than previous generation
- Superior vibration filtering–provides balance stability in unstable environments
- Frameless, flip-top draftshield provides unobstructed access to the weighing chamber 4 Antistatic coated glass helps dissipate static charges
- Library function to store and recall customized applications
- Data Transfer Function helps to output data directly into Microsoft Excel
- Standard USB and RS232 and an optional third port of either RS232 or Ethernet

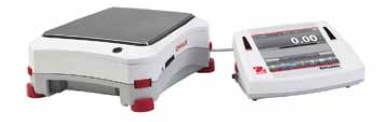

Completely re-imagined from the ground up, the OHAUS Explorer rises to a whole new level —a product so extraordinary, it’s like nothing you’ve seen before!
The OHAUS Explorer features a user friendly application-based graphical software platform
in concert with a redesigned antistatic draftshield, enhanced weighing performance, and a flexible modular display that detaches from the weighing base. Ingeniously striking a balance between cutting-edge technology and functional design, the Explorer delivers accurate performance, with the end user in mind to improve lab efficiency.
Four touchless sensors provide hands-free operation of tare, print, calibration, and other selectable functions.
Adjustable viewing angle display
Resistive touch screen display quickly responds to operator’s touch
Display can be separated from the weighing base. Extension cable accessory extends remote use up to 10 feet.
QWERTY and numeric key pads to quickly input GLP and GMP data
High resolution, 5.7” color TFT display
Comparative
| Item# | EX223* | EX423* | EX623* | EX1103* | EX2202 | EX4202 | EX6202 | EX10202 | EX6201 | EX10201 |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (g) |
220 | 420 | 620 | 1100 | 2200 | 4200 | 6200 | 10200 | 6200 | 10200 |
| Readability (g) |
0.001 |
0.01 |
0.1 |
|||||||
| Repeatability std (g) |
±0.001 |
±0.01 |
±0.1 |
|||||||
| Linearity (g) |
±0.002 |
±0.02 |
±0.1 |
|||||||
| PanSize (in/mm) |
Ø5.1 / 130 |
7.5 × 7.9 / 190 × 200 |
||||||||
| Display Housing (W×H×D) (in/mm) | 7.7 × 3.5 × 6.0 / 195 × 90 × 154 |
|||||||||
| Base Housing (W×H×D) (in/mm) | 9.1 × 13.8 × 15.5 / 230 × 350 × 393 |
9.1 × 3.9 × 15.5 / 230 × 98 × 393 |
||||||||
