Peristaltic Pump

Dispensing pump for culture media preparation

Back to category page

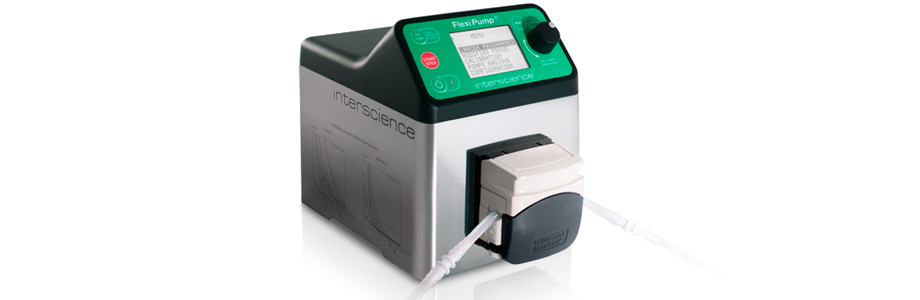

FlexiPump For fast liquid dispensing New

0
0

FlexiPump® is a great tool for serial dispensing of culture media, agar or any liquid diluant, it is compact, has an intuitive interface and great ergonomics. Its speed and precision guarantee an efficient sample preparation.

FlexiPump® technology is available in 2 models:

  • FlexiPump, with the essential functions
  • FlexiPump® Pro, for a high-performance dispensing
    • Download Brochure

    Consumables
    Silicone Tubing Ref. 513 004
    Set of Silicone tubing for pump Ref. 513 011
    Buffered Peptone Water Ref. BM1330
    Half Fraser Ref. BM13308
    Tryptone-Salt Ref. BM1350

    Designed for Microbiologists

    Select from 3 dispensing modes:
  • Continuous
  • Dose: predetermined volume
  • Multi-dose: predetermined volume, with a pause between each dose 32 pre-set programs with digital control screen Rotating button for easy navigation and program settings
    • Compact: only 16 cm wide

    Prescise flow control

  • Up to 1% precision
  • Dispenses liquid from 50 µL to 99 L
  • Contamination free: dispensing assembly is entirely autoclavable with bottle

    • Easy calibration

  • Step-by-step guiding instructions on screen
  • Calibration with any user’s chosen volume
  • Can be done quickly by anyone in the lab


    • Maintenance free

  • High-quality Watson Marlow® pump heads
  • Powerful stepping motor with no wearing parts
  • Heavy duty polycarbonate top shell and durable stainless steel


    • Comparative

    Reference
    561 000
    562 000
    Dose volume
    50 µL to 99 L

    Watson MarlowTM pump
    Single pump head
    Low pulsation double pump head
    Typical precision with 3.2 mm ID tube
    9 mL: 1.8 % - 18 mL: 1 % - 225 mL: 0.5 %
    9 mL: 0.9 % - 18 mL: 0.5 % - 225 mL: 0.4 %
    Delivered with (tubing inner diameter)
    3.2 mm dispensing assemblies
    3.2 mm and 6.4 mm dispensing assemblies
    Flow rates
    1.5 mL/min. to 1.25 L/min.
    3 mL/min. to 2.5 L/min.
    Traceability
    3.5 mm jack
    USB, RS 232 connectors, 3.5 mm jack
    Rotation per minute
    10 to 550 rpm
    Tubing inner diameter
    From 1 to 8 mm only
    Tubing wall thickness
    1.6 mm only
    Tubings made from

    TygonTM and VersilicTM
    Dimensions (H x W x D)
    21 x 16 x 27 mm
    21 x 16 x 33 mm
    Weight
    5.5 kg
    5.8 kg
    Input voltage
    100-240 V~ 50-60 Hz
    Inner diameter of optional tubings
    1.6 mm, 3.2 mm, 4.8 mm, 6.4 mm, 8 mm
    All stainless steel
    Made in France
