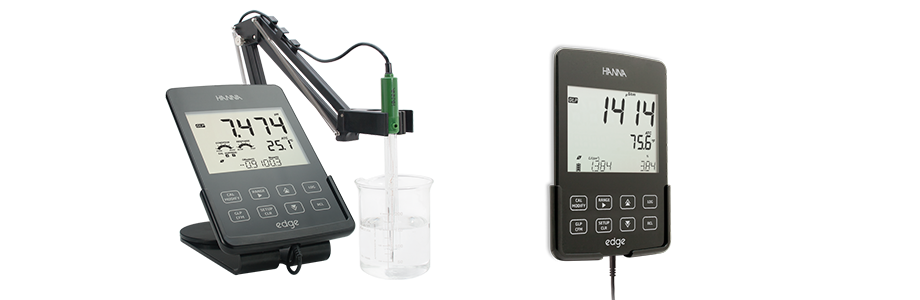

Hanna Instruments is proud to introduce the world’s most innovative pH meter... edgeTM. edge is thin and lightweight, measuring just 1⁄2” thick and weighing less than 9 ounces. edge has an incredibly wide viewing angle, 5.5” LCD and a sensitive capacitive touch keypad.

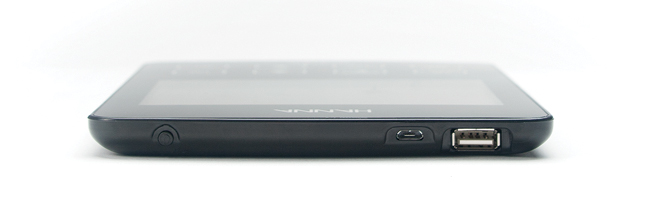

edge measures pH, conductivity and dissolved oxygen through its unique digital electrodes. These digital electrodes are auto- recognized. Providing sensor type, calibration data and a serial number, and they connect to edge with an easy to plug-in 3.5mm connector. edge’s versatile design is equally at home in your hand, on a lab bench or mounted on a wall. edge simplifies measurement, configuration, calibration, diagnostics, logging and transferring data to a computer or a USB drive.

edge features Hanna’s exclusive CAL-CHECK® to warn you if the electrode you are using is not clean or if your buffers are contaminated during calibration. We have also added to CAL-CHECK for sensors with matching pin: now it warns you if the pH bulb is cracked, and if the junction of the electrode is compromised.

edge is the culmination of Hanna’s vision, design capabilities, integrated production facilities, and world class R&D teams. With edge, Hanna has set the new standard!

Download Brochure

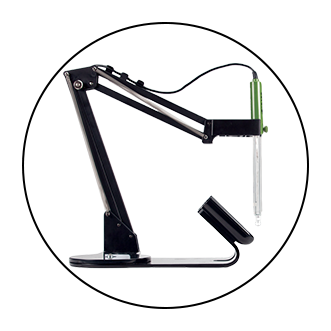

Cradle and Electrode Holder
edge is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge securely in place at the optimium viewing angle.

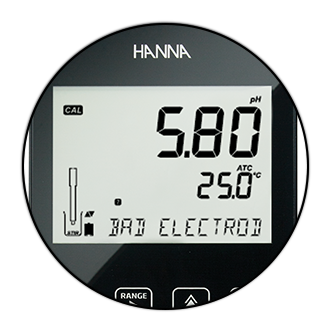

Sensor Check
When used with Hanna’s electrodes equipped with a matching pin, edge constantly checks the impedance of the pH measuring electrode to notify you in real time in the event of glass breakage.

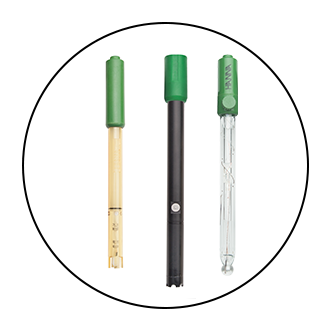

Digital Electrodes
edge electrodes are highly advanced, featuring a built-in microchip that stores calibration information that is automatically retrieved by edge once the electrode is plugged in. These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pins settings.



Specifications
Range: basic mode: -2.00 to 16.00 pH, -2.000 to 16.000 pH; standard mode: ±1000.0 mV for pH
Resolution 0.01 pH; 0.001 pH; 0.1 mV
Accuracy (@25°C/77°F) ±0.01 pH; ±0.002 pH; ±0.2 mV
Temperature Compensation ATC (-20.0 to 120.0°C; -4.0 to 248.0°F)*



The electrodes used with edge are nearly as advanced as the edge itself: featuring a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by edge once the electrode is plugged in.

Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode. Conductivity calibration information includes: calibrated conductivity standards, date, time, and cell constant of the sensor. Dissolved oxygen calibration information includes: standards used for calibration, date, time, altitude and salinity correction.

These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pin settings.
