Microbiology Automation
Discover our new line of plate pourer/stacker. Our MediaFill™ line is the perfect companion of our MediaPrep™ equipment, allowing a complete walkway capacity to fill up to 900 plates per hour.

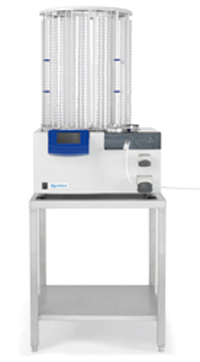

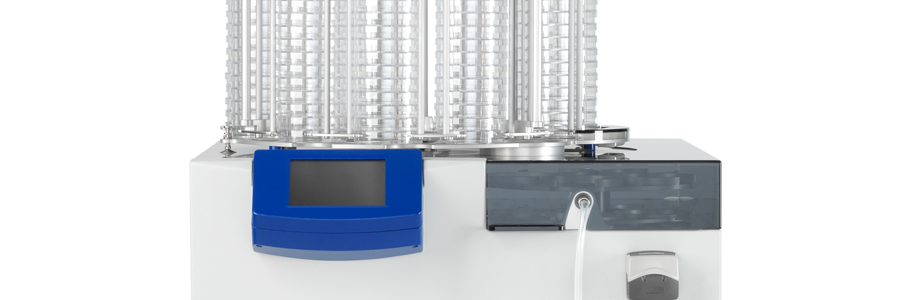

Back to category pageMediafill Pouring and Stacking of culture media in Petri dishes. New

Advantages
- 5.7" touch-screen – easy and intuitive operation
- One touch dish selection – integrated database for pre-programmed Petri dish sizes
- Unattended, fully automatic process – filling and stacking without user intervention
- Smooth and silent operation – maximal reduced noise emission
- Even aluminum surfaces – easy to clean, no holes or gaps where media can flow into
- Two stacker-carousel heights available – for 220 and 440 Petri dishes (at 16.5 mm dish height)
- EasyStack – stacker-carousel can be fully removed from Mediafill
- Integrated peristaltic pump (main pump) – for precise filling of media
- Integrated peristaltic pump (additives pump) – for precise adding of additives (optional)
- Full control of both, the main and the optional additives pump through the Mediafill touch-screen
- Drop-Stop function – prevents spills at the filling nozzle
- Shaker function – optimal distribution of media into Petri dishes
- UV-Lamp with 2.3 W UVC light emission – reduces the risk of contamination
- Manual filling function – either by foot-switch or timed delay
- Peltier Cooling – for re-cooling of Petri dishes (optional)
- Printer function – printing direct on Petri dishes (optional)
Descriptive
| Mediafill | Stack 220 | Stack 440 | |
|---|---|---|---|
| Length (mm) | 683 | ||
| Width (mm) | 662 | ||
| Height (mm) | 348 | 410 | 760 |
| Diameter (mm) | 566 | 566 | |
| Overall Height (mm) | 800 | 1140 | |
| Max. Petri dish stacking height (mm) | 330 | 680 | |
| Petri dish Diameter (mm) | 90 | 90 | |
| Petri dish height (mm) | 12 - 26 | 12 - 26 | |
| Capacity (height of Petri dishes 16.5 mm) | 220 | 440 | |
| Weight (kg) | |||
|
37.5 | ||
|
6.9 | 8.4 | |
|
0.5 | ||
|
1.7 |
